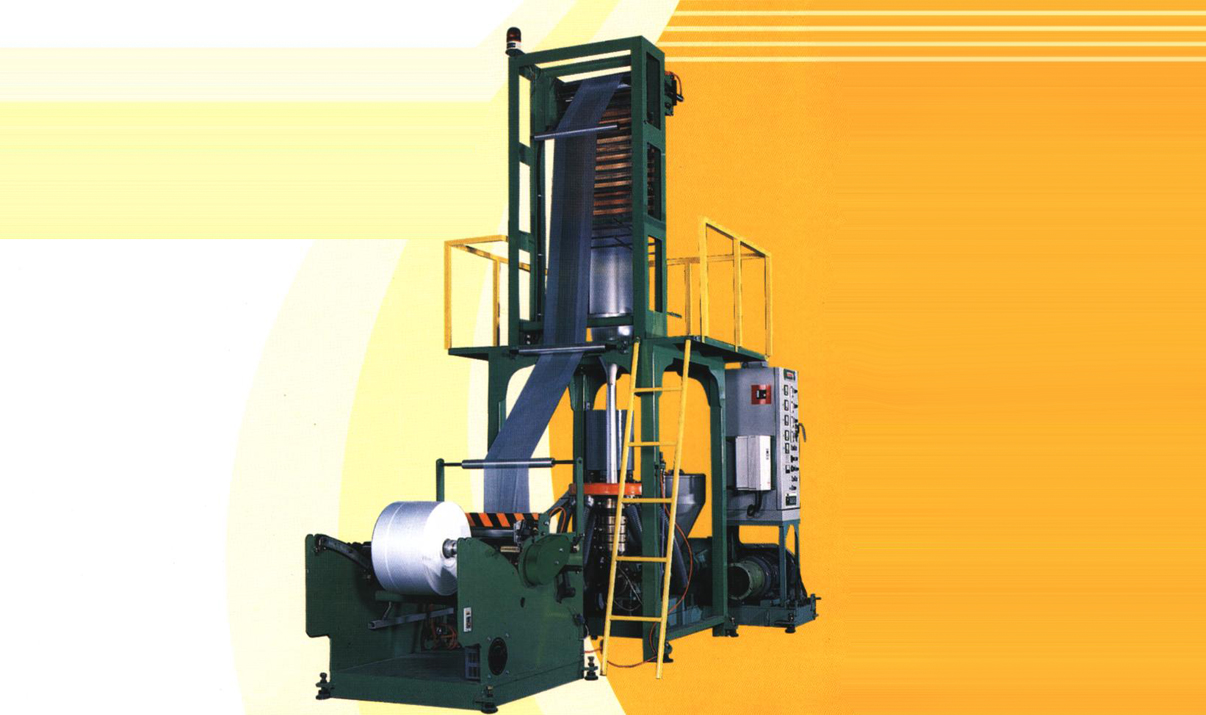

SAMAMEC FILM BLOWING MACHINE FOR HDPE
| Extruder Mixing Type Screw | LTC-45H | LTC-55H |
| Screw Dia | 45m/m | 55m/m |
| Screw Length L/D | 26/1 | 28/1 |
| Screw & Barrel Material | SACM-1, Nitrided and Finished, Hardness Barrel 90° Screw 75° or Over | |
| Gear Material | SCM-4 with Nitrided Treatment | |
| Heat Capacity | 12Kw | 20Kw |
| Main Motor | 15Kw / 20HP | 22Kw / 40HP |
| Inverter Control | Inverter Control | |
| Barrel Cooling System | Air Cooling / Oil Cooling | |
| Control Panel | Complete set with operation switch Amp-meter, magnetic switch power relay, etc. | |
| Auto Temperature Controller | 4 point | 5 point |
| Max. Extrusion Outout/ hr. | 40Kgs | 90Kgs |
| Inflation Spiral Dies HDPE | 80m/mØ | 120m/mØ |
| Width & Thickness of tube | 0.008-0.1mm | 0.008-0.1mm |
| 550m/m Max | 750m/m Max | |
| Take-Up Machine | ||
| Take-Up Motor | 1/2 HP D.C | 1 HP D.C |
| Take-Up Speed | 8-80M / min | 8-80M / min |
| Pinch Roll Width | 600mm | 800mm |
| Winder (Surface Type) | Semi Automatic Bobbin Changer | |
| Winder Motor | 20 Kgs / cm | 30 Kgs / cm |
| Torque motor | Torque motor | |
| Cooling Equipment | ||
| Air Cooling Ring | 1 set | 1 set |
| Air Blower | 3 HP | 7.5 HP |
| Screen Changer | 1 set | 1 set |
